Mining Industry emusion Cable Tensioning Machine

Specifications 1. high pressuer-bearing

2. low weight

3. strong tension

4. operate simply and easy maintenance

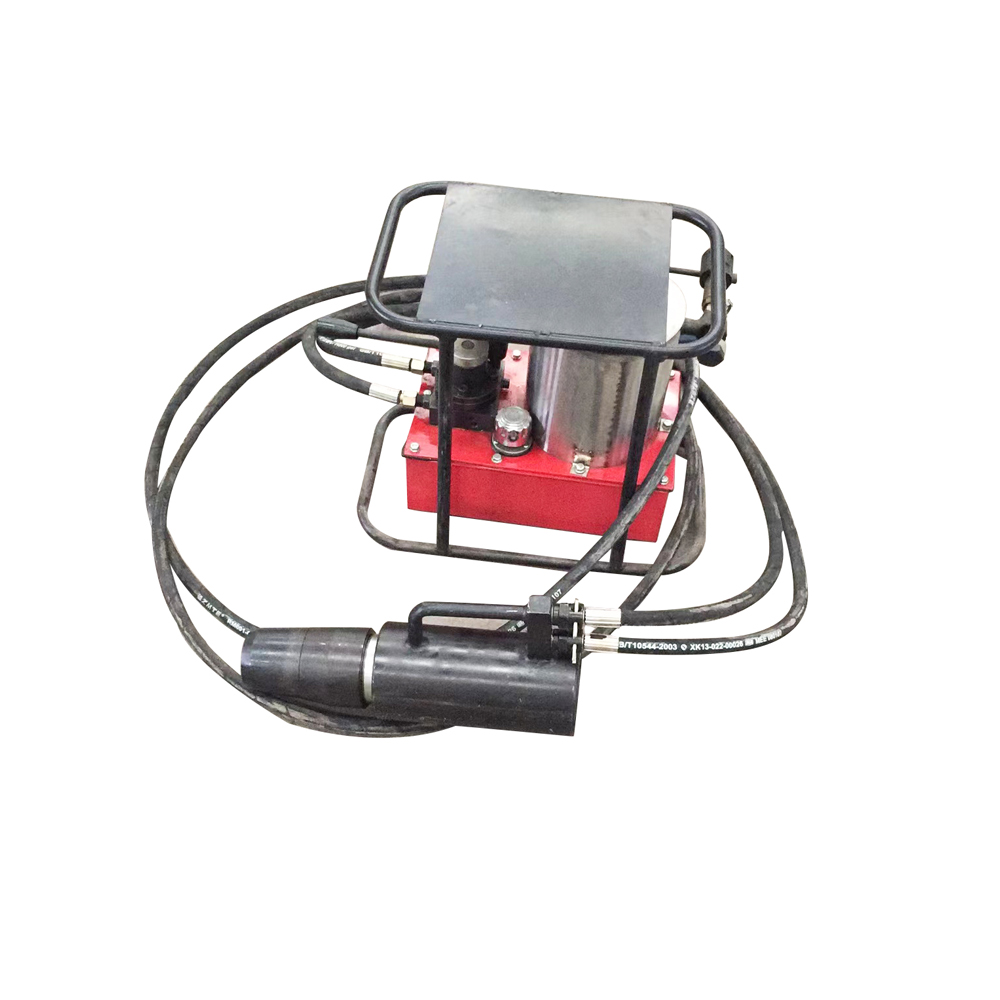

MR29-450/63  Mining Industry Emulsion Cable Tensioning Machine Product:  Mining Industry Pneumatic Cable Tensioning Machine    Type: MR29-450/63 1.Product details:  Pneumatic anchor cable and back tension machine is combination of eletric hydraulic pump and back anchor tension Jack. Jack can complete these automaticly: seize the anchor, load tension, boost and lock anchors under the drive of hydraulic pump,since the poewr sourse is High pressure emulsion and there is no electric utility,so explotion-proof function is very well. especially used in the work of releasing the prestress of the roof for coal and tunnel,solve the caving problem quickly in the goaf and wind in and out area. 2. Parameters:

Rated tensioning  (KN)	450KN
Max Tension Stroke (mm)	120mm
Tension Speed (px/ min)	25.1cm/min(1mpa) 21.2cm/min(63Mpa)
Confined area of Jack(px²)	75.6cm2
Rated oil pressure (MPa)	63MPa
Anchor rope diameter (mm)	28.6mm
emulsion driven Rated pressure	22Mpa
Weight-tension Jack (kg)	35kg
weight- eletric hydraulic pump (kg)	40kg
Execution standard	MT/T 972

        3. Features: The operated valves have the functions of maintaining the hydraulic load and keeping the load step by step. The force indicator shows the value of output force directly. The jack cylinder is made of premium alloy steel which can support high pressure and have huge tension. The design of anchor’s grasping claws are reasonable, the surface is processed by Carbonitriding. It seizes the anchor firmly and smoothly and long service time. The set of equipment work smoothly, operate easily and maintain simply. 4.Package:one set into one steel box    Company Strength Qiaolishen is the first company to produce, research and develop mining prestressing force series products of professional manufacture in domestic. It’s the first brand of China mining prestressing force series product. Founded in 1994, Located in Shunyi, Beijing. Plant covers an area of 50 acres. It’s mainly serve the domestic coal enterprises, has a number of technology patents. It’s always the domestic large-scale coal enterprise supplier for more than ten years, such as Yangmei Group, Jinmei Group, Tiemei Group, Dragon coal group etc.   Pantent Certificate
