Model No.: ZQSZ-80(2.8)
| Selling Units | : | Barrel/Barrels |
The file is encrypted. Please fill in the following information to continue accessing it
Product description
chinacoal07 :hand-held pneumatic drilling machine; pneumatic hand held drilling rig; pneumatic jumbolter; Rock bolting rigs; roof bolting machine
Product Introduction

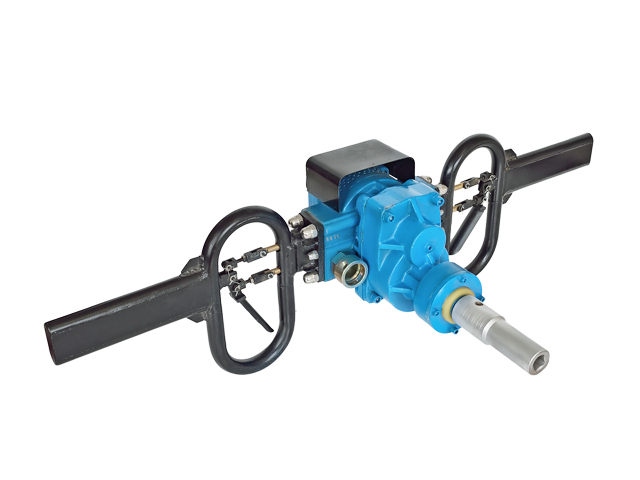

The pneumatic hand-held drilling rig suitable for the coal lane installation with the rock hardness acuities ≤f6, half coal lane of the coal bolting work. It could also drill the anchor hole, mix and install the anchors of the resin type.
Technical Parameters
Small in size, light weight, simple operation, easy maintenance; Metal motor gear, extending using life; Running stability, high reliability; Safety explosion protection, reasonable structure, strong adaptability.
Technical Parameters
| Working air pressure (Mpa) | 0.4 | 0.5 | 0.63 |
| No-load speed (r/min) | ≥1100 | ≥1200 | ≥1300 |
| Maximum load torque (N.m) | ≥45 | ≥58 | ≥70 |
| Rated speed (r/min) | 380 | 450 | 480 |
| Rated torque (N.m) | ≥30 | ≥35 | ≥40 |
| Rated power (Kw) | ≥1.2 | ≥1.6 | ≥2.0 |
| 1/2 no-load speed (r/min) | ≥550 | ≥600 | ≥650 |
| 1/2 no-load speed torque (N.m) | ≥22 | ≥30 | ≥35 |
| Air consumption (m³/min) | ≤2.8 | ≤3.0 | ≤3.8 |
| Noise (dB(A)) | ≤95 | ≤95 | ≤95 |
| Flushing water pressure (Mpa) | 0.6~1.2 | ||
| Total weight (Kg) | 13±2 | ||
| Over dimension(mm×mm×mm) | 550×213.5×237.5 | ||
