Model No.: ZQSZ-140(4.1)
| Selling Units | : | Bag/Bags |
The file is encrypted. Please fill in the following information to continue accessing it
Product description
Packaging & Delivery
| Packaging Detail: | carton box |
| Delivery Detail: | 7 workdays |
Specifications
Small volume, light weight, simple operation, easy maintenance. Gear type pneumatic motor, stable operation, high reliability.

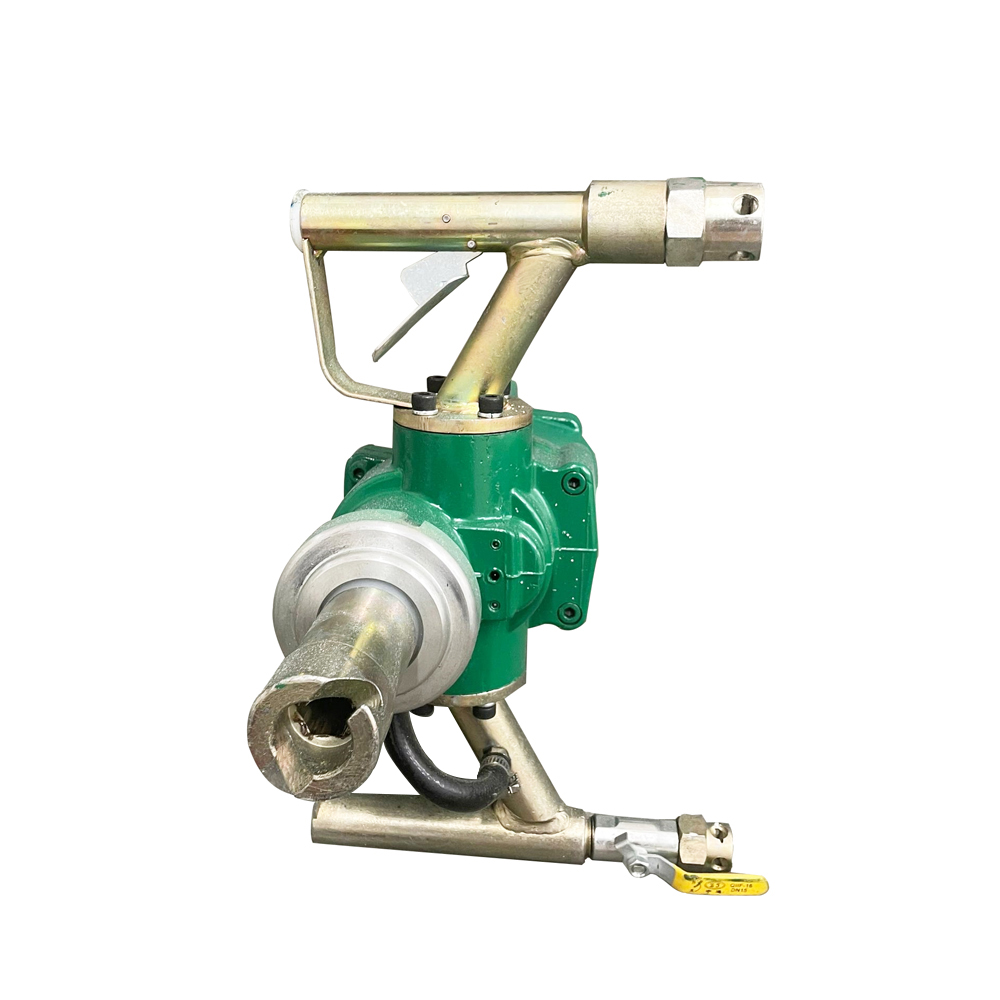

ZQS type pneumatic hand-held bolting drilling machine/Handheld jumbolter(MQTB) used for rock hardness≤f6 half coal for bolting in coal roadway in coal roadway,
homework, or anchor cable. It can bolt holes, and also can drilling anchor holes,
Product features:
Small volume, light weight, simple operation, easy maintenance. Gear type pneumatic
motor, stable operation, high reliability. New type of glass fiber reinforced plastic
pneumatic design, safety explosion-proof, reasonable structure, strong adaptability.
main parameters:
| Model | ZQS-60/2.1 | ZQS-50/1.7 | ZQS-35/1.6 |
| Working pressure(Mpa) | 0.4-0.63 | 0.4-0.63 | 0.4-0.63 |
| Rated pressure(Mpa) | 0.5 | 0.5 | 0.5 |
| Rated speed(r/min) | 330 | 320 | 440 |
| Rated torque(N.m) | 60 | 50 | 35 |
| Stall torque (N.m) | 70 | 57 | 55 |
| No-load speed(r/min) | ≥1000 | ≥1000 | ≥1000 |
| Gas consumption(m3/min) | 4 | 4 | 4 |
| Water flushing pressure (Mpa) | 0.6~1.2 | 0.6~1.2 | 0.6~1.2 |
| Noise(dBA) | ≤95 | ≤95 | ≤95 |
| Total weight(Kg) | 20 | 13.5 | 13.5 |
