MQT-120/2.5C Pneumatic Gold Mining Roof Bolter

china coal0001

8 MQT-120/2.5C Pneumatic Gold Mining Roof Bolter

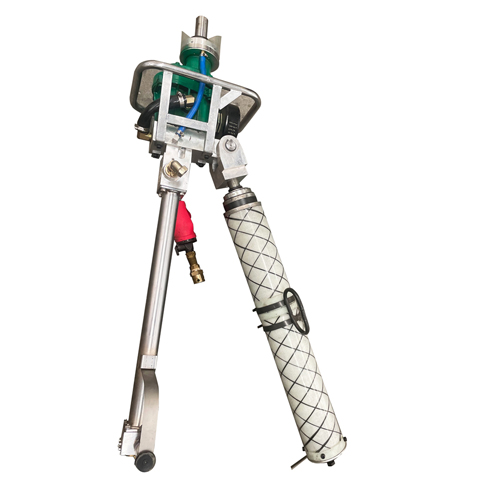

Introduction of MQT-120/2.5C Pneumatic Gold Mining Roof Bolter

MQT-120/2.5C Pneumatic Gold Mining Roof Bolter is applicable to support with cable or bolt in coal laneway, half-coal laneway and rock laneway with rock hardness no more than 100MPa. They are combined with drilling, mixing and assembling. Dual exhaust model and new seals structure ensure the fast and smooth leg expansion and retraction. The unique silencer reduces noise, drilling shaft and leg center are perfect alignment, drilling stably.

MQT-120/2.5C Pneumatic Gold Mining Roof Bolter is working with our hexagonal drill rods of B19 and B22, wrench and various drill bits to carry out the roof supporting work.
Parameter of MQT-120/2.5C Pneumatic Gold Mining Roof Bolter
Item Unit MQT-120/2.5A MQT-120/2.3-B MQT-120/2.3-C
Rated Air Pressure MPa 0.4-0.63 0.5 0.5
Rated Torque N.m ≥120 ≥120 ≥120
Rated Rotate Speed r/min 220 220 220
No Load Running Speed r/min ≥650 ≥650 ≥650
Power Output kW ≥2.3 ≥2.3 ≥2.3
Maximum Push Force kN ≥9.5 ≥9.5 ≥9.5
Noise dB(A) ≤95 ≤95 ≤95
Maxi Load Torque N.m ≥230 ≥230 ≥230
Air Consumption m3/min 2.9~3.8 2.9~3.8 2.9~3.8
Max Height mm 2457 3057 3657
Min Height mm 1126 1276 1426
Roadway Height m 1.5~2.5 2.2~3.1 2.8~3.7
Weight kg 46 51 53
Flushing Water Pressure MPa 0.6~1.2 0.6~1.2 0.6~1.2
Water Pressure MPa ≤12 ≤12 ≤12
Drilling Dia mm Φ25~32 Φ25~32 Φ25~32
