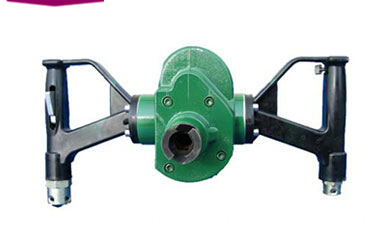

ZQS-35/1.6S pneumatic hand-held drilling rig

ZQS-35/1.6S pneumatic hand-held drilling rig

$350≥1Barrel/Barrels

Payment Type:	T/T
Incoterm:	FOB
Min. Order:	1 Barrel/Barrels
Transportation:	Ocean

Contact Now

Product Description

Product Attributes

Model No.: ZQS-35/1.6S

Brand: haiyan

Packaging & Delivery

Selling Units

Barrel/Barrels

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Product description

QS-35/1.6S pneumatic hand-held drilling rig is suitable for rock bolting in roadway and half roadway where the hardness of rock is less than or equal to f6. It can not only drill rock bolt hole, but also stir and install resin cartridge type rock bolt.

Product Introduction

ZQS-35/1.6S pneumatic hand-held drilling rig is suitable for rock bolting in roadway and half roadway where the hardness of rock is less than or equal to f6. It can not only drill rock bolt hole, but also stir and install resin cartridge type rock bolt.

Main Characteristics

1. Small size, light weight, easy manipulation and simple maintenance;

2. Metal motor gear,longer service life;

3. Stable running,high reliability;

4. Safe and anti-explosion, rational construction, high adaptability;

Technical Parameters

Model	ZQS-60/2.1	ZQS-50/1.7	ZQS-35/1.6
Working pressure(Mpa)	0.4-0.63	0.4-0.63	0.4-0.63
Rated pressure(Mpa)	0.5	0.5	0.5
Rated speed(r/min)	330	320	440
Rated torque(N.m)	60	50	35
Stall torque (N.m)	70	57	55
No-load speed(r/min)	≥1000	≥1000	≥1000
Gas consumption(m3/min)	4	4	4
Water flushing pressure (Mpa)	0.6~1.2	0.6~1.2	0.6~1.2
Noise(dBA)	≤95	≤95	≤95
Total weight(Kg)	20	13.5	13.5
