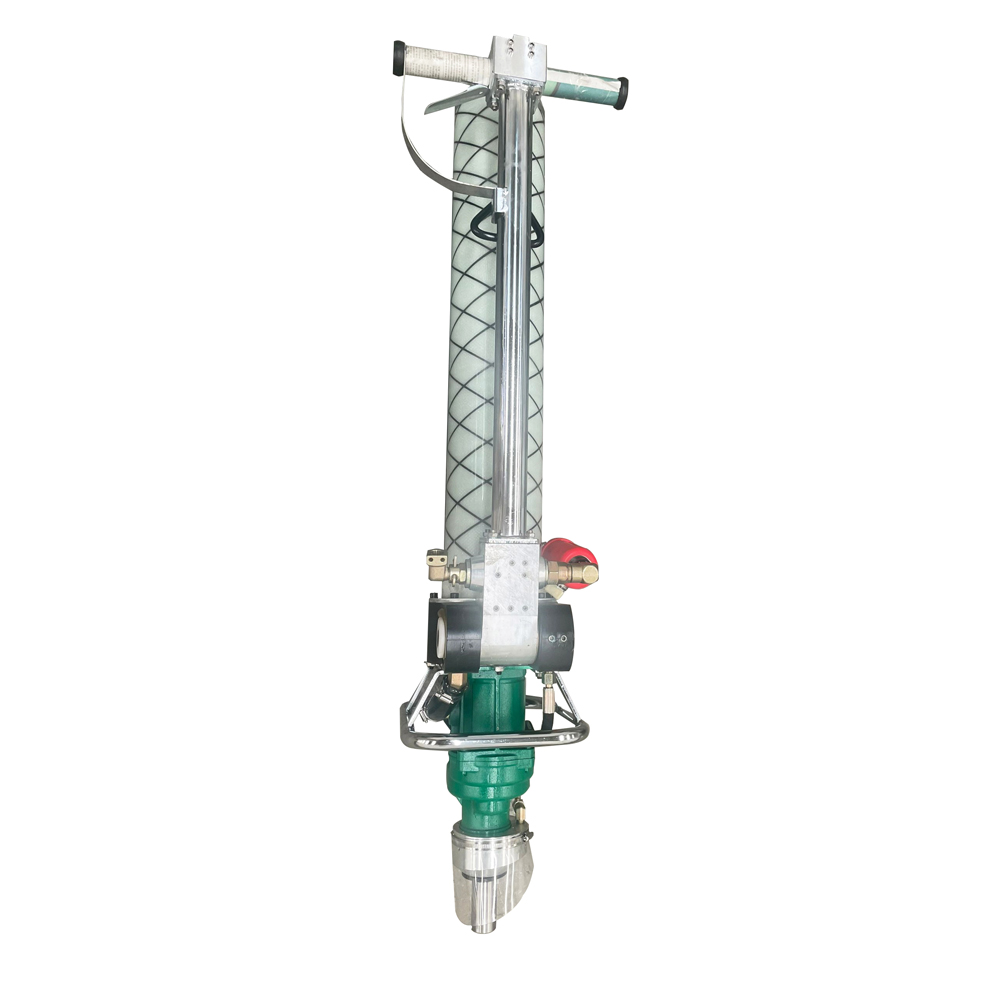

MQTB-80/2.1 Pneumatic prop rib bolter, drill rig

MQTB-80/2.1 Pneumatic prop rib bolter, drill rig

Name: MQTB-80/2.1 Pneumatic prop rib bolter, drill rig
Brand: Jiangyin Haiyan Machinery Technology Co., Ltd.
Price: 222222 USD
Rating: 4.6 (23 reviews)

$222222≥1Barrel/Barrels

Payment Type:	T/T
Incoterm:	FOB
Min. Order:	1 Barrel/Barrels
Transportation:	Ocean

Contact Now

Product Description

Product Attributes

Brand: haiyan

Packaging & Delivery

Selling Units

Barrel/Barrels

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Product description

Packaging & Delivery

Packaging Detail:	packing as below picture which is safe and shockproof
Delivery Detail:	within 2-3 weeks after received yur payment .

Specifications

drilling hole for rib supporting and blast , mix resin capsule and install nut

designed to drill hole for rib supporting and blast , mix resin capsule and install nut .With the prop supporting the drilling machine ,conquering counter torque and auxiliary propelling ,it can reduce labor intensity and improve drilling efficiency .

Item	Unit	MQTB-80/2.1
Working pressure	Mpa	0.5
Rated torque	N.m	80
Rated rotation speed	r/min	255
Rated output power	Kw	2.1
Max. output power	Kw	2.4
Max.load torque	N.m	140
Stall torque	N.m	160
Load air consumption	M3/min	4
Idle rotation speed	r/min	600
1/2 idle rotation speed	r/min	300
Torque at 1/2 idle rotation speed	N.m	60
Noise dB(A)	Sound pressure level	94
Noise dB(A)	Sould power level	111
Weight	Kg	33
Propulsion force	Kn	1.6/2.5/3.5
Max.height	mm	3465
Min.height	mm	1510
Drill connection size	mm	B19 B22
Rinsing water pressure	Mpa
