Model No.: MQT-120
| Selling Units | : | Gallon |
The file is encrypted. Please fill in the following information to continue accessing it
Product description
Small size, light weight, simple operation , easy maintenance.
Gear type pneumatic motor , stable operation, high reliability.
FRP cylinder, security and explosion-proof.
Features:

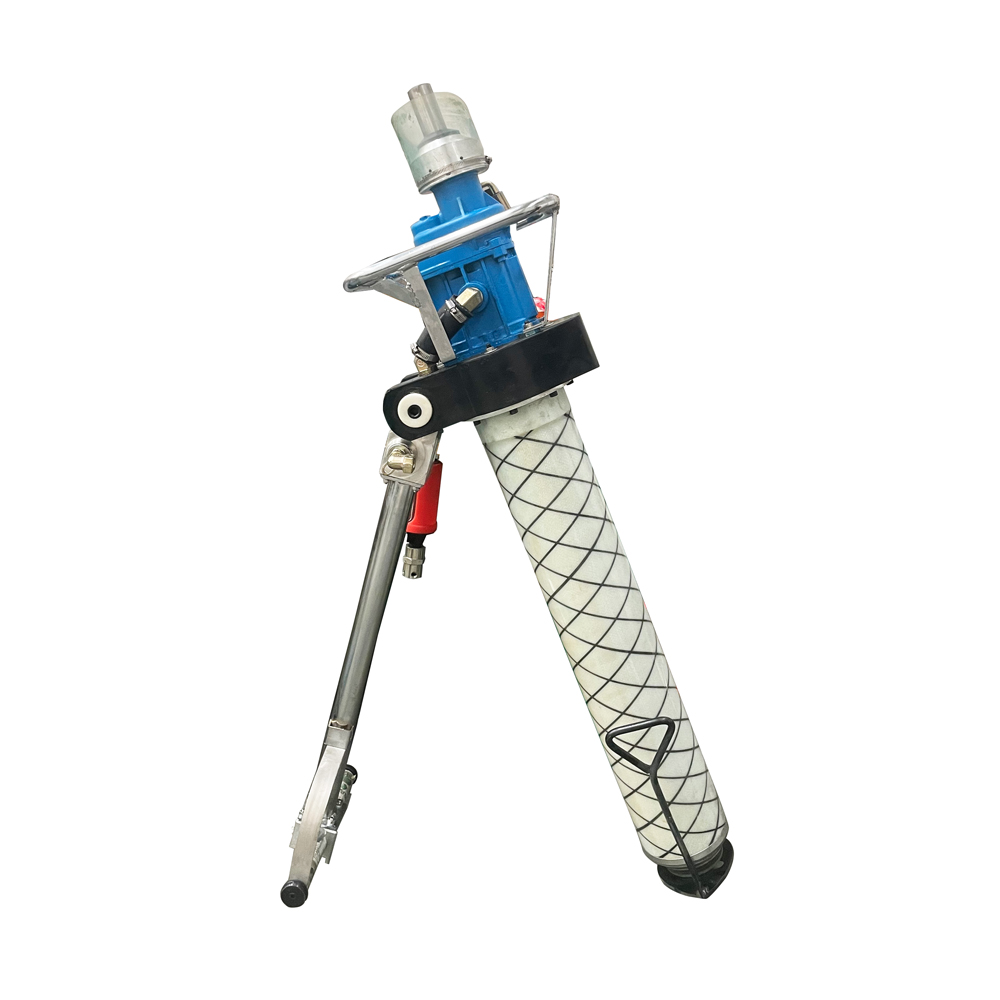

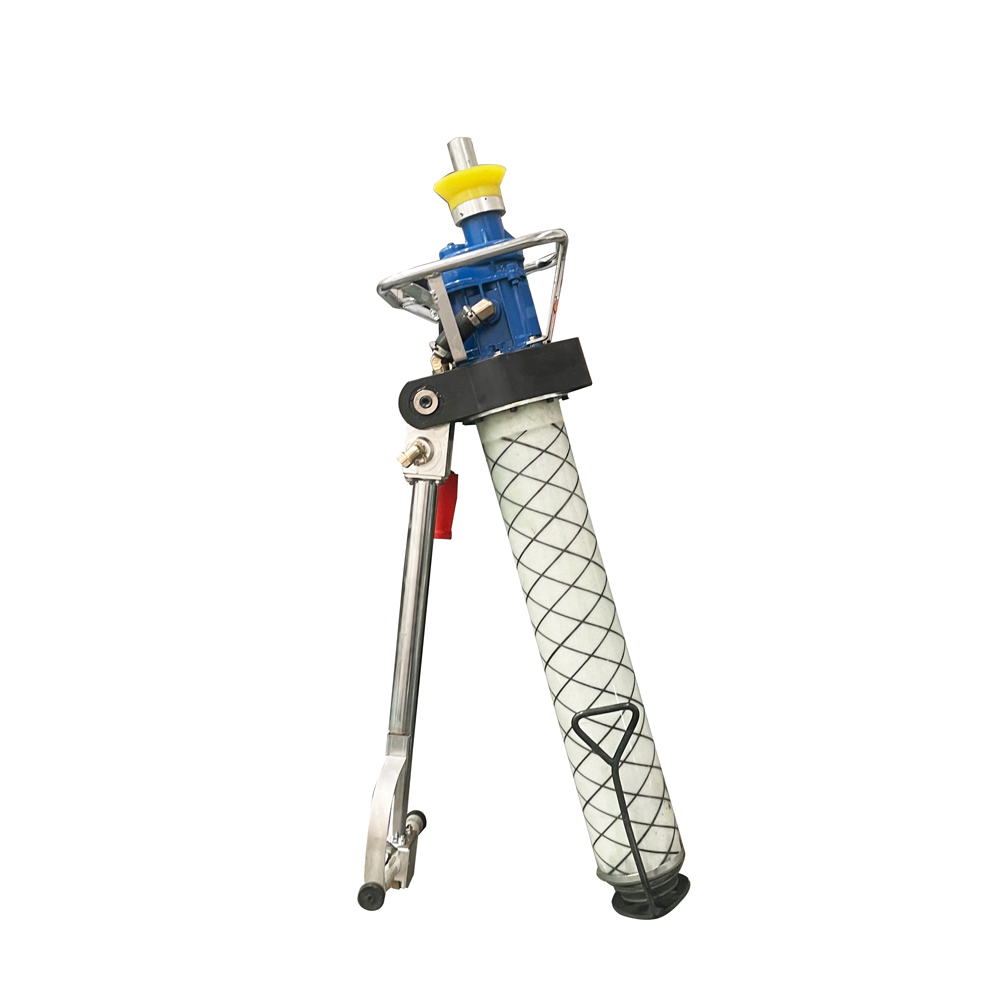

MQT series Pneumatic Roof Bolter is designed to drill roof anchoring hole , mix resin capsule and install bolt and nut in the underground coal mine . Featured with compact structure ,light weight and high performance , it is very important and helpful in the underground roof strata control and management
Technical parameters:
| Working air pressure | MPa | 0.4-0.63 | |||
| Idle load rotate speed | r/min | >600 | |||
| Static torque | N.m | >200 | |||
| Rated air pressure | MPa | 0.5 | |||
| Rated rotate speed | r/min | 190 | |||
| Rated torque | N.m | >120 | |||
| Power output | KW | 2.1-2.8 | |||
| Air consumption | M3/min | >3.5 | |||
| Maximum propulsion | kN | 8.2 | |||
| Optimal water pressure | MPa | 0.6-1.2 | |||
| Noise | dB(A) | <95 | |||
| Drill rod size | mm | 19 | |||
| Weight | kg | 46-51-53 | |||
| With three retractable legs gas | |||||
| Model | MQT-120/2.5A | MQT-120/2.5B | MZQT-120/2.5C | ||
| Min height | 1026 | 1276 | 1426 | ||
| Max height | 2475 | 3057 | 3657 | ||
