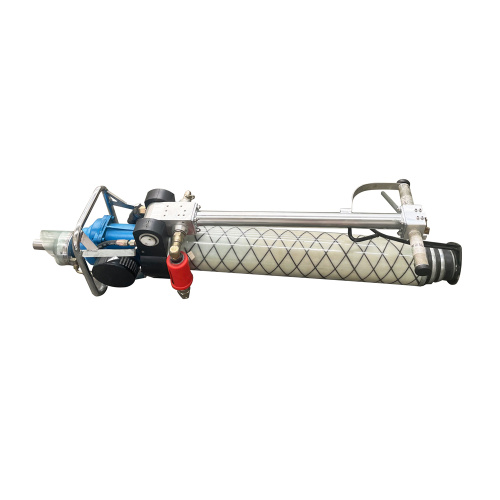

MQT-120 Pneumatic Roof Bolter

Name: MQT-120 Pneumatic Roof Bolter
Brand: Jiangyin Haiyan Machinery Technology Co., Ltd.
Price: 22222 USD
Rating: 4.8 (25 reviews)

$22222≥1Bag/Bags

Payment Type:	T/T
Incoterm:	FOB
Min. Order:	1 Bag/Bags

Contact Now

Product Description

Product Attributes

Model No.: MQT-120

Brand: haiyan

Packaging & Delivery

Selling Units

Bag/Bags

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Product description

MQT-120 Pneumatic Bolter

Specifications:

Small size, light weight, simple operation , easy maintenance.

Gear type pneumatic motor , stable operation, high reliability.

FRP cylinder, security and explosion-proof.

Features:

MQT series Pneumatic Roof Bolter is designed to drill roof anchoring hole , mix resin capsule and install bolt and nut in the underground coal mine . Featured with compact structure ,light weight and high performance , it is very important and helpful in the underground roof strata control and management

Technical parameters:

Working air pressure		MPa		0.4-0.63
Idle load rotate speed		r/min		>600
Static torque		N.m		>200
Rated air pressure		MPa		0.5
Rated rotate speed		r/min		190
Rated torque		N.m		>120
Power output		KW		2.1-2.8
Air consumption		M3/min		>3.5
Maximum propulsion		kN		8.2
Optimal water pressure		MPa		0.6-1.2
Noise		dB(A)		<95
Drill rod size		mm		19
Weight		kg		46-51-53
With three retractable legs gas
Model	MQT-120/2.5A		MQT-120/2.5B		MZQT-120/2.5C
Min height	1026		1276		1426
Max height	2475		3057		3657

Jiangyin Haiyan Machinery Technology Co., Ltd

Guide mining technology innovation and create a new chapter in coal mining machinery

In the vast journey of mining, Jiangyin Haiyan Machinery Technology Co., Ltd. is like a shining star, illuminating every corner of the coal mining machinery field with its extraordinary technical strength and innovative spirit. Since its establishment, we have been committed to becoming a leader in the mining machinery and equipment industry, specializing in the manufacturing of pneumatic anchor rod drilling machines, frame supported pneumatic hand-held drilling machines, pneumatic vibration drilling machines, pneumatic leg type anchor rod drilling machines, pneumatic leg type vibration drilling machines, pneumatic hand-held drilling machines, leg fixing sets and various drilling machine accessories, mining (pneumatic) Anchor Cable Tensioning Equipment, mining (manual) Anchor Cable Tensioning equipment, tension meters, jack gear pump series products, rock drills, coal helpers, etc. We also produce various injection molded, precision machined spare parts, cast nylon and other plastic products to provide solid guarantees for mining safety production.

Technological innovation, creating a brighter future

We are well aware that technological innovation is an inexhaustible driving force for the development of enterprises. Haiyan Machinery has gathered a group of engineers and technical talents in the industry. With their profound professional knowledge and rich practical experience, they continuously break through technical barriers and successfully develop a variety of coal mining machinery equipment manufacturing such as pneumatic anchor drilling machines with independent intellectual property rights. Our products are sold both domestically and internationally, adhering to the principles of quality assurance, reputation first, and service first. We are dedicated to providing excellent product services for our coal mine users.

Superior quality, safe and reliable

Quality is the lifeline of an enterprise. Haiyan Machinery strictly follows the ISO quality management system standards, from raw material procurement to production and processing, to finished product inspection, every link is strictly controlled to ensure that every product can meet industry standards. We are well aware that in the mining environment, the safety and reliability of equipment are crucial. Therefore, our product incorporates multiple safety protection mechanisms in its design to ensure stable operation under complex and changing working conditions, safeguarding the safety of miners' lives.

Service first, win-win future

Customer centered and service-oriented "is the service philosophy that Haiyan Machinery has always adhered to. We have established a comprehensive pre-sales consultation, in sales guidance, and after-sales service system to ensure that customers receive timely and professional support during the selection, use, and maintenance process. We deeply understand that customer satisfaction is our pursuit and the driving force behind our continuous progress.

Looking ahead to the future, Haiyan Machinery will continue to uphold the core values of "innovation, quality, and service", and with more enthusiasm and firm steps, continuously cultivate and refine in the coal mining field, contributing our wisdom and strength to the modernization and intelligence of mining. Let's go hand in hand and create a brilliant future together!
